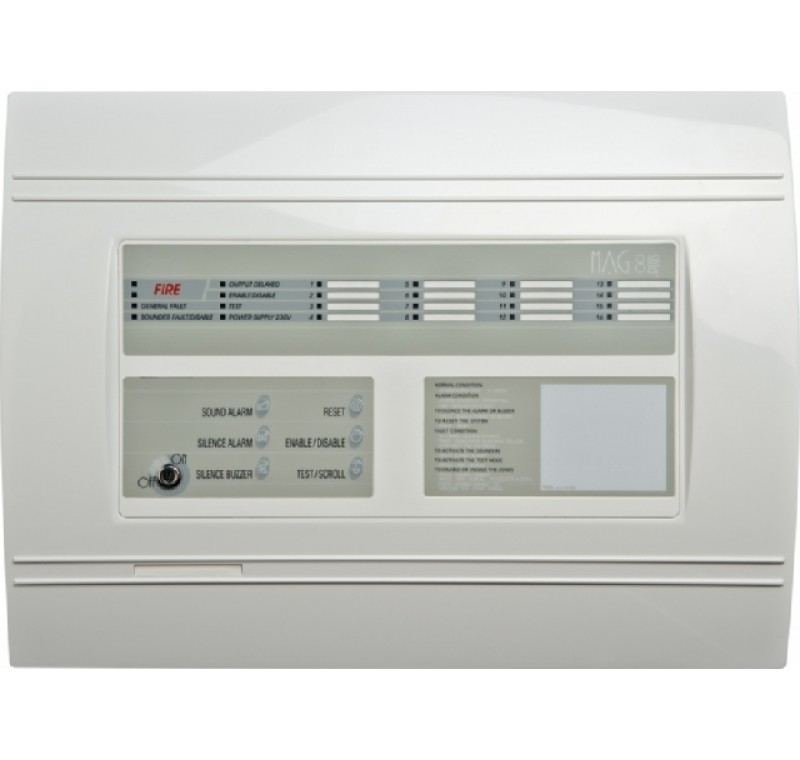

MAG8PLUS TELETEK FIRE DETECTION 8 – 16 ZONES EXPANDABLE
- It supports up to 512 detectors and announcement buttons without numeric limit
- To prevent false alarms, the possibility of double activation of the detector (Double knock) at a specific time
- Supports up to 8 sirens in 2 outputs
- Supports siren expansion cards
- Supports relay expansion cards
- Supports event card
- Output delay – Delay siren activation (1-10min)
- Terminal resistance (EOL) allowing continuous monitoring of inputs
- 2 access levels (Panel Lock) are protected by using a key on the front of the panel
- Great ease of installation
- No planning required
- Certified according to European standards EN54-2 / 4
- 4 year warranty
SPECIFICATIONS:
- Power supply 230VAC ± 10% fuse 0.63A
- Auxiliary output 24 VDC / 0.3A
- 12 V / 18 Ah battery (Not included)
- Operating temperature -5 ° C to + 40 ° C
- Weight (without battery) ~ 4kg
- Dimensions: -metallic bottom 441x331x80mm -plastic cover 461x344x45
