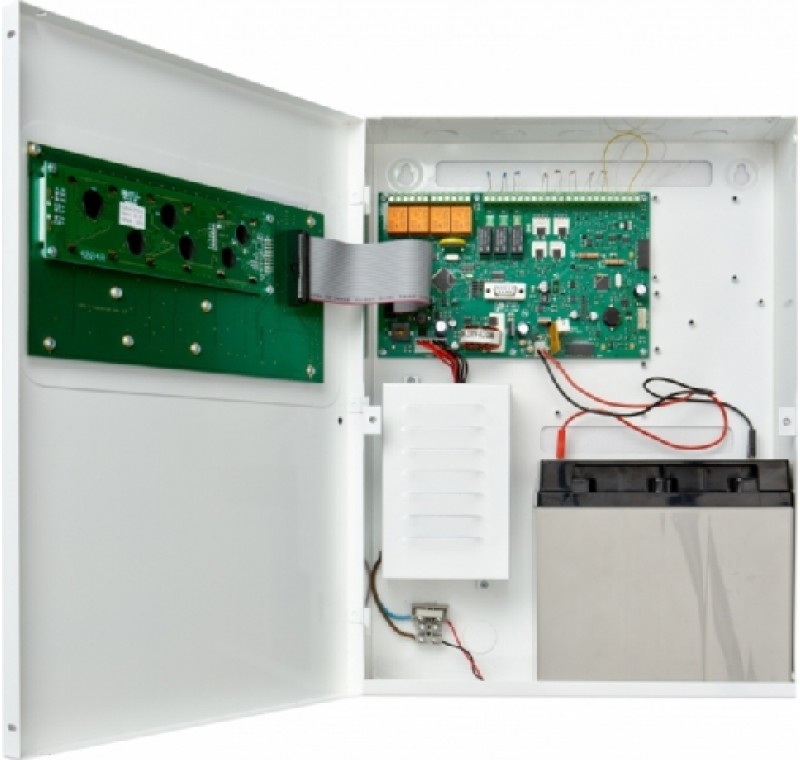

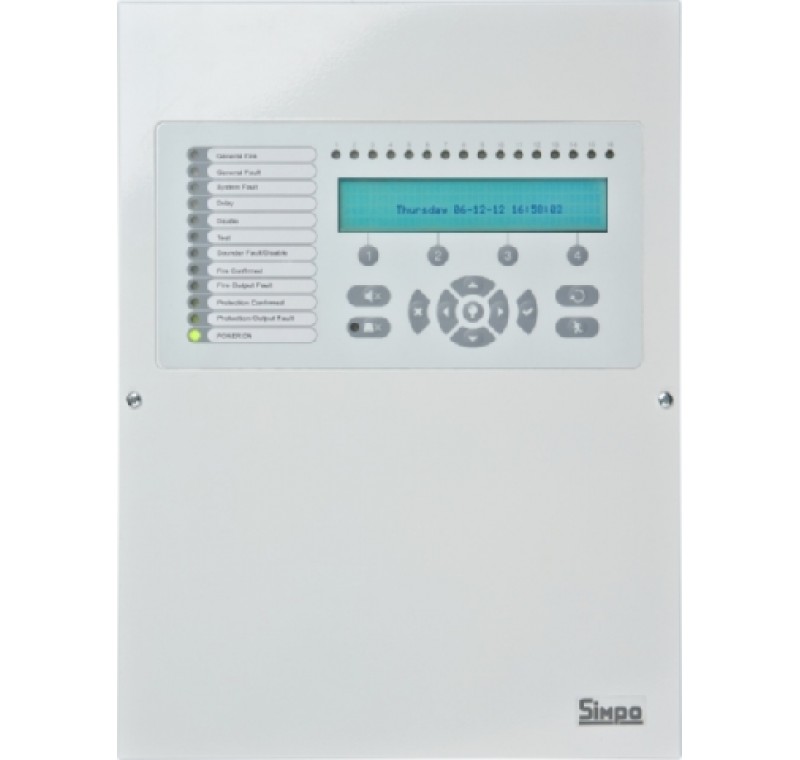

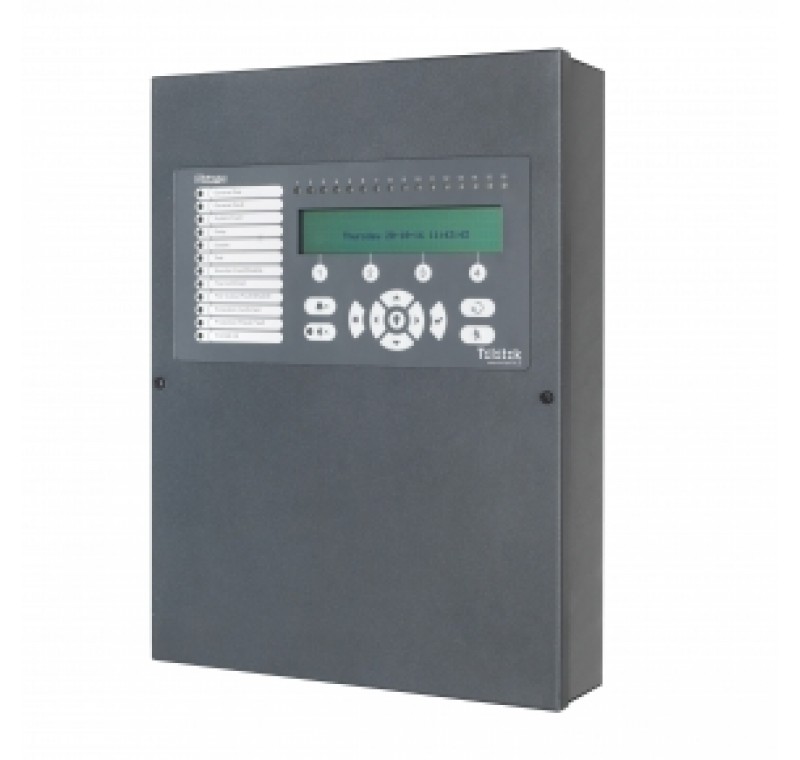

SIMPO 1L POINT FIRE DETECTION UP TO 2 LOOPS (LOOP)
- Up to 2 loops – 48 Zones
- Teletek protocol – 250 devices per loop.
- Loop with 2 built-in isolators
- Each device can describe up to 40 characters
- Automatic registration of devices in the system (Auto Addressing)
- Manual way of registering devices (Self Addressing)
- Day / Night Mode
- Easy input / output scheduling.
- Display of 3 messages of the system at the same time
- LCD Liquid crystal display
- Up to 32 panels in the network (RS-485) (Observer)
- 4 Relay contacts (24V, 15A)
- USB for PC programming (Proste) & keyboard programming
- Multilingual support
- 10,000 memory events
- Certified according to EN54 2/4
SPECIFICATIONS:
- Power supply 90 to 264 VAC
- Frequency 47 to 440 Hz
- 12V / 18Ah backup battery
- Power output power 4.2A
- Operating temperature -5 ° C to + 40 ° C
- Weight (without battery) 4.2kg
- Dimensions 306x412x81.2mm
