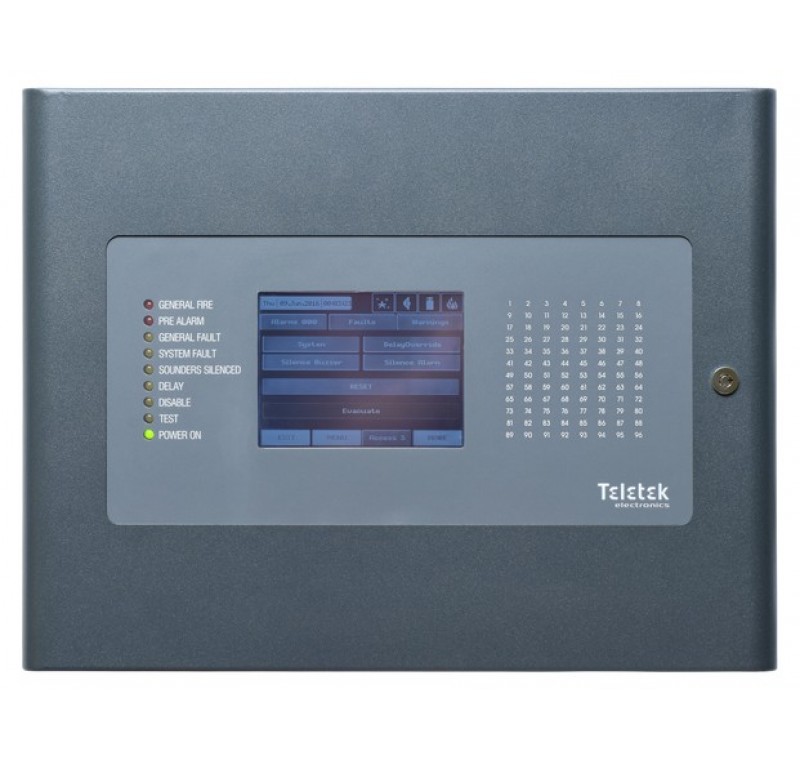

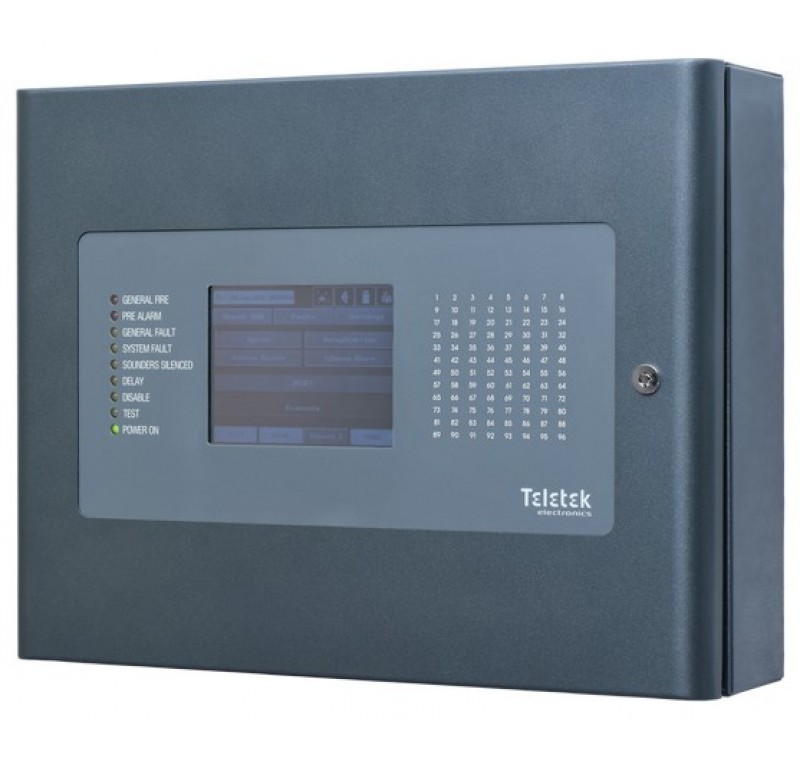

RIS 1L TELETEK POINT FIRE DETECTION PANEL
- Up to 4 loops & 96 belts.
- Teletek Electronics protocol – 250 devices per loop.
- Each loop has 2 built-in insulators.
- Quick and easy programming. (Proste & Keyboard)
- Each device can describe up to 40 symbols.
- Day / Night operation. (Day / Night)
- Up to 128 programmable inputs / outputs – freely programmable.
- Touch screen. Up to 32 panels in a network (TCP / IP protocol) – Local Observer software
- Ethernet input for programming and monitoring.
- USB port to upgrade software version.
- Possibility to use a repeater.
- Ability to detect dual device address
- Ability to detect and detect a short circuit
- Expansion card with galvanic isolation
- Possibility of automatic registration of devices (Auto addressing)
- Multilingual support. Recording 10000 events.
- Supports loop extension for System Sensor Protocol – 198 devices per loop (99 detectors / 99 units).
- Metal Facade
- Certification / Compliance EN54-2 / 4
SPECIFICATIONS:
- Main power supply ~ 230 VAC + 10% / – 15%
- Frequency 50 / 60Hz
- Backup power supply 1 battery, 12V / 18Ah
- Electric power 7A
- Operating temperature -5 ° C to + 40 ° C
- Weight (without battery) 6 kg
- Grey colour
- Dimensions 430x330x117mm
